dez 2.0 for DEZ1 is here!
I just released dez 2.0 for the DEZ1 binary delta format.
Consider this a 1.0 release! The format is now frozen.
It was just going to be 1.3 but I noticed that 1.2 came out 4
years ago so I thought 2.0 was in order. I did prepare 1.3 in the
repository but then I just tagged it again with 2.0.
There aren't really many tunables left so I dropped the flags
field and made the OP_SINGLE_SPLIT value tunable. It doesn't make
much difference anyway.
This is now a modular Java 11 project using my common java.make.
I'm also using it to work on adding junit(4) testing to the
java.make system. I may split out java.make into jni.make,
java.make, junit.make, and so on.
tuning it so haven't rolled it back into the base yet.
As usual the Delta-Z home page
has download links and other
snot. code.zedzone.au
houses a browsable copy of the repository; which now uses git.
q
Update: I decided to update the javadocs, as they are.
The interesting page is
the DEZFormat
class which defines and describes the format.
These initial links may not be long-term stable as I will possibly
look at a unified javadoc build across all my java projects. And
I really need to do something about the blinding default
stylesheet. My eyes! My EYES!
Update: I couldn't put up with it so I fixed the
stylesheet. This time I used some Workbench 2.0 colours but
without the 3D borders. Came out quite nice. I filled out the
api documents somewhat as well.
Big Easter Software Bundle!
After basically spending the entirety of Easter (a 4 day holiday
here in Australia) plus half of today I've packaged up and
released a big ol bunch of stuff.
NativeZ 1.0 is an updated version
of CObject which is
portable and modular. I've moved my other projects to use it
rather than their own copies which had evolved and diverged over
time.
jjmpeg 4.0 is updated to use
NativeZ as described on the previous post. There are also a bunch
of bug fixes and small improvements. It now includes a module for
some demos.
zcl 1.0 has been converted to a
modular project and mostly to using NativeZ apis. The tools
package has moved to a demo module.
They are all now capable of cross platform builds and they all
generate platform specific .jmod files as one of the outputs. To
do this they all use a new common java.make which is
a modular and updated version
of an earlier java.make
as covered in the last post (and I made further improvements).
Apart from modules it supports parallel builds, generated java
sources, native code libraries, and cross platform builds using a
very simple configuration mechanism.
They're also a bit smaller due to compression used for some
initialisation tables.
Another project I have gone quite far on is an incremental java
compiler. By scanning the .class files and .java timestamps i'm
able to generate complete and accurate lists of both files that
need to be rebuilt and files that need to be deleted across a
multi-module source compilation. I have all the parts and I think
they should work but I need to tie them together into a usable
system, and then extensive testing.
Sigh, but I need a holiday. I might take most of the week off - like
pretty much everyone else is anyway.
Development Ongoing
I've spent all of Easter so far just hacking away at a bunch of
stuff. Today looks nice so I think I will try to get out of the
house, but who knows. My sleep apnoea has been pretty terrible
lately and when I foget to use my MAD (mandicular advancement
device) i've been wiped out all day, which has been most of this
week. Sigh.
I've primarily been working toward a new modular and portable
release of jjmpeg and zcl, but i've been distracted along the way
and also had some difficulty just making basic decisions.
java.make
I spent way too long on trying to perfect the build system and
things like where intermediate files are stored. There are still
trade-offs that might mean another change, sigh.
But it does work pretty well. The main makefile isn't
particularly complicated even if some of the macro quoting makes
it messy to read. The driver makefiles are trivial - like a
simpler version of automake.
It works by the master makefile including config.make, defining
some variables, and then including java.make.
This for example is the complete Makefile for nativez.
dist_VERSION=1.0
dist_NAME=nativez
dist_EXTRA=README \
build.xml \
nbproject/build-impl.xml \
nbproject/genfiles.properties \
nbproject/project.properties \
nbproject/project.xml
include config.make
java_MODULES=notzed.nativez
include java.make
It's a trivial case so it has a trivial makefile. I added a make
dist target to build up an archive of the source so that meta-data
is really most of the file.
The makefile also builds the native libraries and that is covered
by another makefile
fragment src/<module>/jni/jni.make which is
automatically included if detected.
This is likewise quite trivial for such a trivial example.
notzed.nativez_JNI_LIBRARIES = nativez
nativez_SOURCES = nativez-jni.c nativez-$(TARGET:-amd64=).c
nativez_CFLAGS = -Os -Wmissing-prototypes
nativez_HEADERS = nativez.h
This includes the main .c file and either nativez-windows.c or
nativez-linux.c depending on the current target.
So make does this:
- Compiles all .java under src/notzed.nativez/classes to .class files.
- Generates all native binding headers (from javac -h).
- Automagically creates .d dependency files for all .o files.
- Compiles all .c into .o objects.
- Copies nativez.h file into a staging area for the .jmod.
- Links the .o files into libnativez.so or nativez.dll depending on the target.
- Copies all the .class files into a modular .jar file.
- Copies all the .class files, the .so file, the .h files and license files into a .jmod file.
And only does each step if necessary. For example step 2 doesn't
just take the output of javac which would force every .c file to
be recompiled any time any .java file changes regardless of what
it included. So I use install -C to only copy
changed headers from a staging area. I also use some tricks to
avoid building all the .c dependencies (which requires first
compiling all the java) when you do make clean or make dist.
I'm still debating whether i blow away some of the javac output
directories to ensure an absolutely correct build, or let that be a
separate step and just rely on using the per-module compile flag
which is much faster if less accurate.
I'm also still debating whether it builds the .jar and .jmod files
by default or as a seprate target. For these trivial projects it
doesn't really take any time but if it did it could become a pain
as the code can be executed without either.
jjmpeg is a somewhat more complex case which includes
generated java sources, external dependencies, and (now) generated
c sources and it isn't much more complex to define.
Initially I had everything in the same project but decided to
split it out. The former did allow me to hone down the details on
the build system though and i'm pretty happy with it now; it's
very accurate, simple, flexible, and easy to use.
nativez
I mostly just moved over to the new build system (trivial) and
added a few new functions.
However due to some of the latest in jjmpeg I will probably
revisit some of the underlying ideas here.
zcl
I converted this into a modular project which mostly meant moving
some stuff around. I also changed it to use NativeZ as it's
GC/binding mechanism and to use nativez utility functions where
appropriate. Being modular lets me split of auxilliary demo code
more cleanly so i've done that too.
zcl is all pretty much implemented in a single large (5KLOC) file.
I actually spent a couple of hours splitting it apart into
multiple files because I thought it was getting a bit unwieldy
(and modern emacs struggles with the size of the file
unfortunately). But then I changed my mind and threw it all away.
zcl uses a generated pointer table and typedef casts to manage the
OpenCL function linkage and while it works i'm thinking of
revisiting it again.
I haven't used OpenCL for a while and don't need it at work at the
moment and I can never really think of anything useful to do with
it. So it hasn't been tested much.
jjmpeg
I already had a modular jjmpeg so this wasn't a big change, until
I decided to keep going. First I moved to the new build system.
I already had moved it to NativeZ but there were some lingering
functions that I hadn't cleaned up.
Then I wrote some demos. A simple example to read video frames.
One that saves frames to image files via Java2D functions.

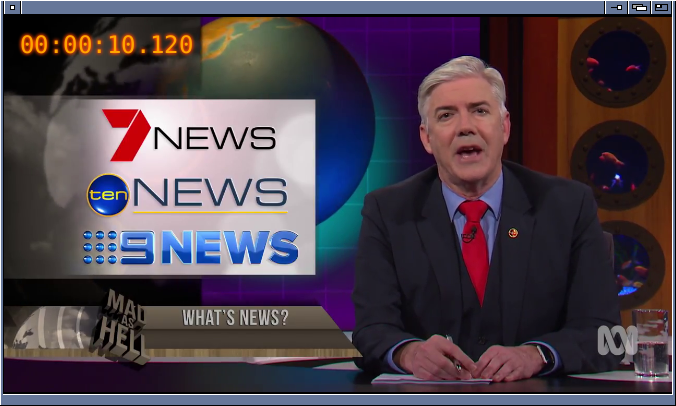

Another that displays video frames in a resizable window at about

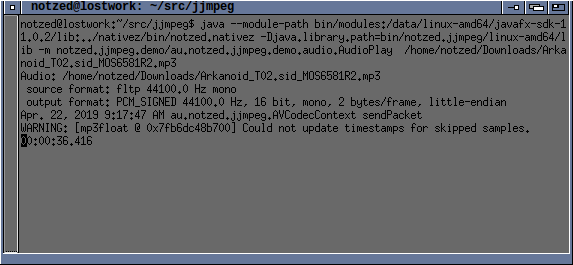

the right speed (i.e. a mute video player). And then a music
player, which lets you adjust output parameters.
The music player needed some more bindings and converted enums so
I added that. And it needed a way to get to the samples in a
format I could play.
First a bit of background. In earlier versions of jjmpeg I just
exposed the data pointer array of an AVFrame as a ByteBuffer and
provided entry points into libswscale to allow one to convert
frame data formats. This is very messy and error prone and really
quite pants to use. So copying the ideas from
the PixelReader
from JavaFX I've created a similar AVPixelReader which is flexible
enough to implement MOST of the PixelReader api and hide all the
details of libswscale. The current implementation works by
creating an AVPixelReader targeting the size you want and then you
can write it various Java targets in whatever pixel format you
want. I've got some nice helpers that wrap this to write to some
Java2D BufferedImage (via the DataBuffer) or JavaFX WritableImage
(via a PixelReader).
So I decided to do the same thing with libswresample and samples.
But I don't need to support other pixel readers/writers and only
just dump out arrays of bytes so I made a much simpler interface.
Although libswresample can stream I basically enforced that a
whole buffer needs to be converted at a go otherwise the logic of
tracking the frame gets a bit messy.
At this point I was cleaning things up and thinking about a
release but got side-tracked again ...
jjmpeg - bindings
jjmpeg has a couple of different ways that things are
semi-automated. All simple parameter accessors are created using
C macros. Java JNI handles are loaded via a table which describes
the type, name, and signature. Library functions from
libavcodec.so et al are defined by a table and loaded by a simple
platform-specific function. The tables are all const'd, the
variables are mostly static, so everything should go in read-only
memory and be fairly efficient to utilise.
The tables are handrolled. As are the variables which hold the
function pointers - which means i'm copying them directly from
header files and turning them into variables. This is error prone
and provides no compile time safety confirming that the function
matches the prototype.
And with 64-bit pointers the tables themselves are quite large.
Each entry has pointers to strings, pointers to pointers, and some
flags.
So I thought i'd revisit that.
With a simple code generator I create a struct with all function
variables in it, extracted from the headers at compile time. I
have a compact descriptor - essentially a stream of bytes - to
encode enough information in order to fill out said structure.
It's a mess of shit perl but it works.
The resolution of java objects for jni use is also likewise table
driven, so I did the same for that. It makes the assumption that
jclass, jmethodID, and jfieldID are all pointer sized but that
seems a pretty safe bet.
In short I shaved off about 20% of the size of libjjmpeg.so doing
this.
This is an example of the driver file which defines things of interest.
header avutil libavutil/opt.h {
av_free
av_dict_free
av_set_options_string
av_opt_serialize
av_opt_copy
av_opt_next
av_opt_find
av_opt_set
av_opt_get
...
}
java AVOption au/notzed/jjmpeg/AVOptions$AVOption {
<init>, (JLjava/lang/String;Ljava/lang/String;IILjava/lang/String;)V
p, J
}
I'm not particularly enamoured of the Java definitions but it
simplifies the generator. Hmm, looking now I can use javap to get
this info so maybe I can simplify this somewhat whilst performing
additional verification checks at the same time.
The generator creates a couple of static anonymous structs and a
descrption string, and as a bonus includes the required header
files. There are also some #defines so I didn't have to change
any of the code that uses them.
/* This file was autogenerated on Monday 22 April 09:35:47 ACST 2019: */
/* src/notzed.jjmpeg/jni/extract-proto.pl src/notzed.jjmpeg/jni/extract-proto.pl -f /opt/ffmpeg/4.0 src/notzed.jjmpeg/jni/jj-avoptions.def */
#include <libavutil/opt.h>
static struct functable {
/* libavutil */
void (*av_free)(void *ptr);
void (*av_dict_free)(AVDictionary **m);
int (*av_set_options_string)(void *ctx, const char *opts, const char *key_val_sep, const char *pairs_sep);
int (*av_opt_serialize)(void *obj, int opt_flags, int flags, char **buffer, const char key_val_sep, const char pairs_sep);
int (*av_opt_copy)(void *dest, const void *src);
const AVOption *(*av_opt_next)(const void *obj, const AVOption *prev);
const AVOption *(*av_opt_find)(void *obj, const char *name, const char *unit, int opt_flags, int search_flags);
int (*av_opt_set)(void *obj, const char *name, const char *val, int search_flags);
int (*av_opt_get)(void *obj, const char *name, int search_flags, uint8_t **out_val);
} fn;
static const char *fn_names =
"#avutil\0"
"av_free\0"
"av_dict_free\0"
"av_set_options_string\0"
"av_opt_serialize\0"
"av_opt_copy\0"
"av_opt_next\0"
"av_opt_find\0"
"av_opt_set\0"
"av_opt_get\0"
;
static struct {
// au/notzed/jjmpeg/AVOptions$AVOption
jclass AVOption_classid;
jmethodID AVOption_new_jlliil;
jfieldID AVOption_p;
} java;
#define AVOption_classid java.AVOption_classid
#define AVOption_new_jlliil java.AVOption_new_jlliil
#define AVOption_p java.AVOption_p
static const char *java_names =
"#au/notzed/jjmpeg/AVOptions$AVOption\0"
".<init>\0(JLjava/lang/String;Ljava/lang/String;IILjava/lang/String;)V\0"
",p\0J\0"
;
Rather than have a single global table I have one per file
(roughly on per class). This leads to a small amount of
duplication but keeps everything simple and isolated and also aids
incremental compilation. By having each table static to the
compilation unit also allows the optimiser to remove any address
calculation - it just goes to the linker via the .bss section.
I'm still thinking of other ways to reduce the binding size and/or
overhead. For example the accessors are pretty small ... but
there's many of them. The problem is if I use tables I need to
keep them in sync between Java (e.g. field ids), or if I use
strings then I need table lookups. ffmpeg seems to be moving
toward the 'libavutil/opt.h' mechanism for accessing everything
anyway (probably because of python influence?) so perhaps I should
just use that or at least evaluate it.
But I will first have to move these changes to nativez and perhaps
zcl.
Other
I fixed a few bugs along the way. I wasn't creating a few objects
correctly so they weren't being tracked by the recovery process -
mainly a holdout from earlier implementations which tracked
objects differently. I wasn't freeing an AVFormatContext properly
- these can be created in two different ways and need to be freed
differently. Sigh, even the free functions take different
argumements (some of the avcodec api is such a mess). Anyway I
use the opaque pointer to track this so I could do it properly.
There are probably other leaks but it's rather much harder to test
than a standalone C program like playerz.
I also looked very briefly at writing a Vulkan binding as well.
Hmm, i'm not sure on this one, it's a pretty big API although as I
learn more it will probably shrink in apparent size. But
regardless it's a bit more than a weekend project that OpenCL was.
It will probably need a code generator to make it managable, at
least for certain objects like the construction parameters. I'm
mostly concerned with the overheads so will be looking into
different mechanisms.
And these might trigger a reworking of everything else along the
way.
Still, i'm not sure yet on it, I don't really have a need for it
or know it well enough to do a good job either.
Modular Java, Make. FTW!
I've been working on packaging up the modular versions of various
bits of software I have. One big change is that due to the way
javac (and to a lesser extent netbeans) works I had to rearrange
the source tree, and it also completely changes the way javac is
invoked. So my
previous java.make
is no longer useful.
As i've now added some inter-module dependencies (e.g. nativez)
there's a another question: do I keep them as separate packages,
or do I just combine them into a single modular project?
For work I went through the same question previously and ended up
just putting everything in the one project.
- It has implications on version repository maintenance - all in
one project makes it a bit simpler;
- I've got makefiles to handle native and generated code and it
fits fairly cleanly into the way netbeans enforces the source
tree (for better or worse). In addition to src/module/classes
there is optional src/module/jni/Makefile (native code) and
src/module/gen/Makefile (generated java) which are automagically
included in the build at the right times.
- I have build dependencies at the module level and a makefile
which builds each java module separately. To guarantee correct
builds it purges all classes before building;
- netbeans (≤ 10) doesn't seem to work well with foreign
modular projects. When you add them as a dependency it just
references the build directory but wont rebuild them and wont let
you navigate to them. It's a fucking pain.
So ... for similar reasons i'll probably do the same.
One strong reason not to is that the projects aren't as closely
related - jjmpeg, zcl, and so on.
So what to do ...
Recursive Makefiles
I thought one solution is to just have a build system which
isolates the modules so that you can only build the ones you're
interested in. i.e. if you don't have external dependencies for
one you're not interested in, just build the rest.
So ... based on the structure I have already I spent an inordinate
amount of time trying to get the separate makefiles to work. In
short: I fucking couldn't. I got 95% of it working, and the
dependencies were relatively simple (yet very fragile!) but I just
couldn't get make to rebuild some targets on a single run. A
second run would always work. Just not good enough.
The problem is that as the toplevel makefile doesn't know when the
sub-makefiles need to run it has to try to run them every time
using phony targets. But it has to run them at the correct time.
Generators are run first, then the module is compiled (which
generates any native .h files), then jni is built if it exists,
resources are copied, and jmod or jars created as appropriate. I
could almost get it to work but some of the dependencies weren't
recognised as updated; make would say 'this target needs
rebuilding' then the next line 'this target is updated'. I think
it has something to do with the way it handles phony targets and
because I had multiple references to a status file from different
levels. It would recognise one update but not another. I could
get accurate builds, but not always get the jar/jmod from 'make
jar'. I also had to do some other weird tricks like dummy actions
on rules which where updated by dependencies via phony rules. I
mean it worked but it was very obtuse.
I actually got it very close and it even supported parallel make
quite well, but fuck what a pain to get working.
One Makefile To Rule Them All
So I did some searching and came across a chapter of a book that
suggested using a single makefile, but using includes to make the
parts more manageable.
So I took the per-module makefiles and stripped out some common
stuff, renamed some variables and redid the toplevel makefile.
After a little mucking about with the generated depenedencies a
little bit I had something working within an hour. And parallel
make works even better.
As an example this is what the toplevel makefile currently looks
like. It automatically finds various things like java source,
generators, and native sub-systems and runs them all at the
correct time via the dependency graph.
nclude config.make
java_MODULES=notzed.jjmpeg notzed.nativez notzed.jjmpeg.fx notzed.jjmpeg.awt
notzed.jjmpeg_JDEPMOD=notzed.nativez
notzed.jjmpeg.awt_JDEPMOD=notzed.jjmpeg
notzed.jjmpeg.fx_JDEPMOD=notzed.jjmpeg
notzed.jjmpeg.fx_JAVACFLAGS=--module-path /usr/local/javafx-sdk-11/lib
include java.make
Provided targets include '{module}', 'jar', '{module}-jar'.
So now I have that working I can think about separating the
projects into separate ones rather than modules in way that lets
them all be built together. Probably in that case I would add an
{module}_XDEPMOD variable which references the location and
module(s) and just builds them before doing anything else. On the
other hand this isn't the way you do it with autoconf (and other
build systems, although some handle it) for external dependencies
so maybe it's not worth it.
Faster ... Faster Builds
Whilst doing this I noticed early on that javac has a '-m' flag
for building modules that performs dependency checking. Either I
didn't notice this when I first wrote the modular build system or
I didn't think it important: while it only rebuilds what is
necessary it doesn't remove stale files (deleted inner/anon
classes or colocated classes).
Slightly stale builds are not the end of the world so it's
probably not a big ask to require a make clean occasionally anyway
as the improved build time is significant.
But there is a better way to do it!
Using the jdk.compiler one can wrap access to javac and do some
interesting things. To cut a long story short I wrote a javac
server that monitors which source files are recompiled and
automatically deletes any stale files. This works if all compiles
go through the server but can result in stale files if files are
compiled otherwise.
So I wrote some more code that scans the compiled class files once
and then does a reverse lookup based on the SourceFile,
this_class, and module-source-path to discover stale files and
prime the database. This is done at server startup. Actually it
should be able to be run at any time to post-fix the class tree,
so it could be incorporated into the build in other ways.
I wrote a simple .class parser (almost trivial infact) to be able
to retrieve the class metadata and some other simple code to do
the source lookup.
I wrapped this up in a simple REST-like-service and a script
'sjavac' that compiles and runs the server on demand and then
passes requests to it. The server just shuts itself down if it's
idle for too long. The compile times for jjmpeg+nativez isn't
very long anyway but using the compile server alone speeds up
complete builds significantly, and incremental builds are now
sub-second.
Another issue is concurrency from parallel builds. javac will
recompile any out of date classes it encounters even if it isn't
in the module specified by -m - which can lead to two separate
compilers working on the same files. This conflict can break a
build run. But I think this is due to incorrect makefile
dependency definitions as if they are done properly this shouldn't
happen.
sjavac serialises compiles at the module level anyway because the
compiler uses multiple threads already (afaict, it's a bit too
fast to find out on this project) and I haven't set the code up to
handle concurrent compile requests anyway, but I want it to be a
drop-in replacement for javac for a project build.
Now that i've moved to a single toplevel makefile it's actually a
very simple setup. The java.make referenced above is only 100
lines long. sjavac is 100 lines of bash and 600 lines of
stand-alone java. And together these provide faster, more
accurate, and repetable builds than a special tool like ant or
maven. With significantly less setup.
Update 10/4/19: Oh for fucks sake!
It turns out that javac -m doesn't recompile dependent classes if
they are out of date, just the first-level dependencies or any
missing classes they require. This doesn't make a lot of sense
because there are many changes where this behaviour would lead to
an inconsistent build so it makes this option fairly useless.
It's a trivial change to the makefile to fix it but it means that
it only builds incrementally at the module level.
I guess this gives me the next problem to solve. I think I have
enough scaffolding to be able to extract the dependency tree from
the .class files. Well I'll see on that.
