Little tool things & anim stuff

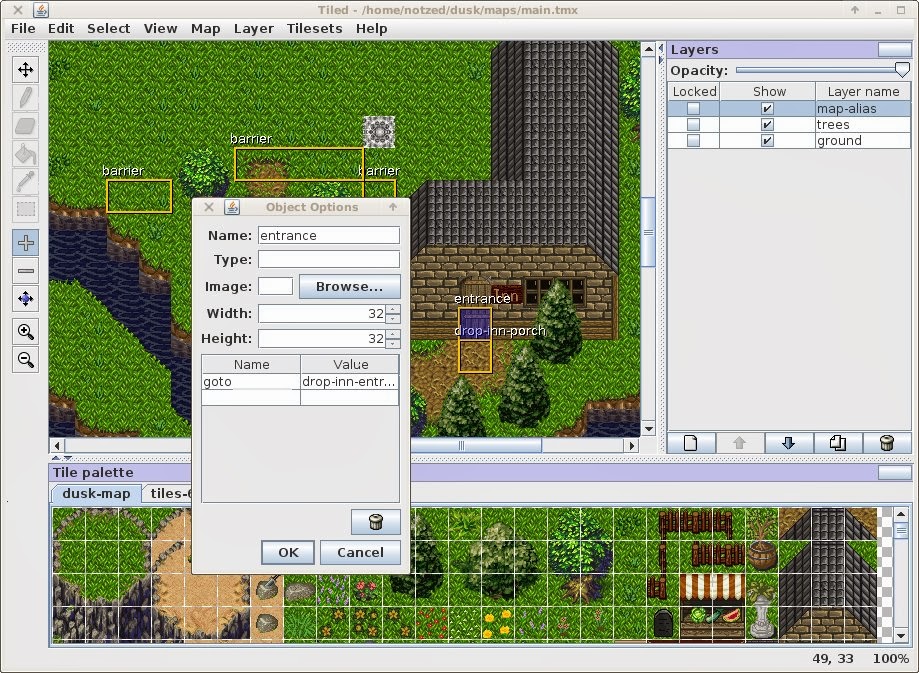

I was poking around at making a simple map viewer in a way that works directly with tiled output mainly as a way to see the animation stuff in motion. But I looked a bit further at using it for some other map related things.

I store everything in a jar file - from a set of pngs for the tilesets, to the multi-layered map, the tile 'script' information, and I just had a quick 15 minute poke to see how to add the location based script information shown here as well. This allows one to define some basic behaviour like impassable barriers, doors/portals, and calls out to scripts directly in the tiled.

per-tile properties allow one to define impassable/un"stand"able objects, or calls to scripts, and the animation sequences - i'm still coming up with a simple enough design for the last point, but it will probably be something like:

anim=group,step[,duration]

Where group is symbolic, step is a sequence number, and the duration is the number of milliseconds per step taken from the tile with a step of 0. To make a tile animatable, one draws using the tile with step 0. This allows the same tiles to be used in different animation sequences so long as step 0 is unique. I'm still debating whether i have an extra layer of indirection and define animation sets which operate together to ensure they are always in sync. However i'm not sure it's worth the complication as I think the lower level animation system can ensure that anyway.

How on earth did ant become the build tool for java?

I got pretty sick of netbeans taking forever to build a very simple JavaFX app on my apparently now-too-slow (too-little-memoried) dual-core laptop, and so looked into why it was taking so long by creating a Makefile.

I wasn't expecting this ...

[notzed@unknown001fe11d1e42 MapViewer]$ time ant clean jar

... many pages of completely illegible and altogether
    meaningless-to-human-or-computer output ...

BUILD SUCCESSFUL
Total time: 22 seconds

real    0m22.527s
user    0m32.211s
sys     0m1.919s
[notzed@unknown001fe11d1e42 MapViewer]$ make clean all

... a succinct if not particularly human-friendly list
    of the specific commands executed ...

real    0m1.563s
user    0m1.678s
sys     0m0.349s
[notzed@unknown001fe11d1e42 MapViewer]$

What? What? Huh?

Oh, so it seems 'ant clean' cleans all related projects as well so it's rebuilding many more files needlessly. I thought one of the main points of having multiple sub-projects is to avoid this kind of thing ... but yeah, "whatever", ... in the parlance of our time.

So what about just changing one file ...

[notzed@unknown001fe11d1e42 MapViewer]$ touch src/mapviewer/MapViewer.java
[notzed@unknown001fe11d1e42 MapViewer]$ time ant jar

.. pages of crap again ...

BUILD SUCCESSFUL
Total time: 7 seconds

real    0m8.344s
user    0m9.161s
sys     0m1.038s
[notzed@unknown001fe11d1e42 MapViewer]$

Even what amounts to a simple batch script which just does everything from scratch is an order of magnitude faster than using ant - which only compiled one file. With JavaFX (as well as android), netbeans just keeps forgeting to pick up changes so I almost always have to use shift-f11 (complete clean and rebuild) every time I run whatever i'm working on otherwise I get either the old code or runtime failure.

I'm using javafxpackager to create the final jar, and the makefile is only 30 lines long, and you know, at least a bit readable.

I hate to think of the days I alone waste every year because of this completely incompetent and utterly shit tool.

Oh my god, it's full of boggles.

3rd time lucky

Instead of socialising with mates down at a local winery like I should have been, I was feeling too antisocial so I spent most of yesterday investigating using db-je for duskz ... and pretty much ended up rewriting the whole codebase; resulting in a 3rd totally incompatible game. And I still have about a days work to get back to where I was before ...

In the end the changes are more minor than I thought they would be:

I simplified items to 3 classes (from 7) - general items, wearable items, and training items;
All items are now read-only in terms of the game;
Items in the inventory or on the map are stored via a holder object which tracks wear and usage;
I moved the 'read only'/prototypical information from 'actives' to 'race';
Mobiles have their own race subclass but otherwise there's one big race table (so no demon players anymore, at least not with that name);
Moved things like name/description out of the base object, but provided abstract methods for them. This way a player can have a unique db constraint on the name, but nothing else needs to;
I toyed with using interfaces (and infact did in the end) but the interface is so big and messy I don't think it's really worth it. However having done it I can use it as a tool for cleaning it up since every function that is necessary is easier to see. Thinking I maybe fucked up a little with the Battle rejig.

These aren't very big changes in reality and i just turned them into much more work than was required. However, along the way I cleaned up a few things:

Pared down the interfaces a bit - removing helper functions where they weren't really necessary. e.g. getArmourMod() now takes an argument for including boosted attributes rather than a separate method. I wanted to do more but that will be harder;
Store the passwords properly, e.g. only use bcrypt. Based on code from this nice howto for bcrypt;
Moved more internal data to 'private' and provided helpers which force correct usage. e.g. a check password function rather than access to the crypted password;
Got to ditch all the i/o code, although I still need tools which work in human formats. Currently I have some tab-separated-file format for loading old game data but it would be nice to automate it (or automatically generate tools for it).

But the big benefits of dumping into a db are ...

I/O code is much simpler and more reliable;
Automatic contstraint checks ensure the validity of all data in the database. e.g. you can't have an item on the map or inventory which doesn't exist, and you can't delete it if used. You can't create a user with the same name (and accidentally overwrite the old one), etc.;
Transactions! Just simplifies a bunch of stuff;
Indexed access to every object.

I still need to have my own in-memory indices for some objects because db-je is only an i/o layer and doesn't manage java object instances but it is only needed in some cases (e.g. in-game live objects) and is thin anyway. Actually I don't necessarily need these; it may be something i look into in the future although scalability isn't really an issue ...

But today i'm having a day off and will go read a book outside or something (and have an AFD at that).

Objects, they kind of suck.

I had a bit of a poke around the dusk code today, looking into the embedded db option.

It's not going to be as easy as I thought ... oh well.

The main trouble is that the objects used in the game are usually copies of some prototype object. So most of the data is copied but read-only - i.e. the sort of stuff that when you put it into a database you separate into a separate shared table. For Actives, I might be able to move this type of stuff into Races.

Another related issue is that the object heirarchy - whilst accurately representing every behaviour wanted in the game - is just a bit hassle for me to have to duplicate again to fix the database tables. I might simplify it.

It might even make sense to drop the common base class for everthing. One motivation for that was to save on (the considerable) i/o code, but all that can go away now. Another motivation was a single hash table for all live objects; but usually the code is only interested in a sub-set of classes anyway, and if it is backed by a database having seperate tables is more flexible.

I guess I still need to sit on this a bit more becaausei'm trying to be lazy and get away with a small amount of effort.

It worked again!

Just had my first success at launching a cooperative multi-core programme on the epiphany using my own loader.

    ... lots of spew ...
    Loading workgroup
     writing 'e-test-workgroup-b.elf' len  8208 to core  0, 1  0xb6f11000 <- 0x1d618
     writing 'e-test-workgroup-b.elf' len  8208 to core  1, 1  0xb6e1a000 <- 0x1d618
     writing 'e-test-workgroup-b.elf' len  8208 to core  2, 1  0xb6e08000 <- 0x1d618
     writing 'e-test-workgroup-b.elf' len  8208 to core  3, 1  0xb6df6000 <- 0x1d618
     writing 'e-test-workgroup-a.elf' len  2808 to core  0, 0  0xb6f19000 <- 0x154c8
     writing 'e-test-workgroup-a.elf' len  2808 to core  1, 0  0xb6e23000 <- 0x154c8
     writing 'e-test-workgroup-a.elf' len  2808 to core  2, 0  0xb6e11000 <- 0x154c8
     writing 'e-test-workgroup-a.elf' len  2808 to core  3, 0  0xb6dff000 <- 0x154c8
    find symbol _shared
     section base = 8e000000 val=00000000
    Global shared = 0xb4df5000
    Reset cores
    Start cores: 0,0 0,1 1,0 1,1 2,0 2,1 3,0 3,1
    Waiting for results
    result 0 = 000013ab
    result 1 = 000130ab
    result 2 = 001300ab
    result 3 = 013000ab

I have two columns each with different programmes. The two cores in each row communicates individually on their problem and writes the result to shared memory. I came up with a queing primitive an 'eport' which handles arbitration on a 1:1 basis.

Although the per-core e_workgroup_config is in the elf file, it is uninitialised, so I had to set that up during the loading phase ... which took me an hour or so of faffing about to realise ...

The Code

So the whole point of this exercise is to write non-hetereogeneous multi-core programmes without having to hard-code addresses or manually extract symbols from elf files. The code below demonstrates that i've managed this to about as good a level as one can expect without having to customise any of the toolchain.

Program A defines the global shared resource (even though in this case it doesn't use it), a local eport endpoint, and a remote queue address (bbuffer).

struct interface shared __attribute__((section(".bss.shared")));

extern struct eport bport __attribute__((weak));
extern int bbuffer[4] __attribute__((weak));

struct eport aport = EPORT_INIT(4);

int main(void) {
        int lid = e_group_config.core_row;
        int *bbufferp;

        bbufferp = e_get_global_address(lid, 1, bbuffer);

        eport_setup(&aport, e_get_global_address(lid, 1, &bport), 4);

        for (int i=0;i<20;i++) {
                int wid = eport_reserve(&aport);

                bbufferp[wid] = i == 19 ? -1 : (i + (1<<((4*lid)+8)));
                eport_post(&aport);
        }
}

It feeds out numbers to add one at a time to the ecore in the same row but in column 1. The 'eport' handles arbitration and blocking and so no 'critical section' arises at either end by passing ownership from the queue slot from one to the other (well it will when i fix a bug i just spotted) in an asynchronous manner; which is critical for performance.

Program B takes the values as they arrive adding them up - until a sentinal arrives. It then saves the result and pings the host.

extern struct interface shared __attribute__((weak));
extern struct eport aport __attribute__((weak));

struct eport bport = EPORT_INIT(4);
int bbuffer[4] __attribute__((section(".data.bank1")));

int main(void) {
        int lid = e_group_config.core_row;
        unsigned int qid;
        int val;
        int sum = 0;

        eport_setup(&bport, e_get_global_address(lid, 0, &aport), 4);

        do {
                qid = eport_wait(&bport);

                val = bbuffer[qid];

                if (val != -1)
                        sum += val;

                eport_done(&bport);
        } while (val != -1);

        shared.sum[lid] = sum;
        shared.c[lid] = 1;
}

The only 'pain' is that each endpoint of the eport needs to be pointed to the other end explicitly - it can't be handled in the linker. Oh and symbols outside of the sub-workgroup must be accessed using weak references, which can be a bit easy to mess up (I think i can use void *, which helps protect against errors). These ecore programmes must be linked with '-r' to create relocatable elf files but otherwise do not need a linker script.

The host code is fairly straightforward too although I haven't yet got anything tidy for the return communications (actually eport would work too but you'd need one pair for each result core).

        struct interface *shared;

        e_init(NULL);
        e_reset_system();

        wg = ez_open(0, 0, 4, 2);

        ez_bind(wg, "e-test-workgroup-a.elf", 0, 0, 4, 1);
        ez_bind(wg, "e-test-workgroup-b.elf", 0, 1, 4, 1);
        ez_load(wg);

        shared = ez_addr(wg, 0, 0, "_shared");

        ez_reset(wg);
        for (int i=0;i<4;i++)
                shared->c[i] = 0;
        ez_start(wg);

        for (int r=0;r<4;r++) {
                while (shared->c[r] == 0)
                        usleep(100);
                printf("result %d = %08x\n", r, shared->sum[r]);
        }

Still a few bugs and things to finish off but it's a solid foundation.

Unfortunately ... it's nowhere near as trivial as loading a demand-paged elf file. The code has to do some of the linking and a few other bits and pieces - it's about 1 000 lines at the moment.

The e-zed runtime ...

I thought i'd have a quick look at hacking on parallella today - I thought about trying a multi-core algorithm again but in the end I decided I didn't want to code up all that boilerplate and worked on the elf-loader code again.

The last time I looked at it I had tenatively started hacking up an api to support multi-core loading but it was pretty pants and so I left it there.

This morning i started afresh, and it worked out much simpler than I thought.

This is the API I am currently working towards:

  ez_workgroup_t *ez_open(int row, int col, int nrows, int ncols);
  void ez_close(ez_workgroup_t *wg);

  int ez_load(ez_workgroup_t *wg, const char *path, int row, int col, int nrows, int ncols);
  void *ez_addr(ez_workgroup_t *wg, int row, int col, const char *name);

  void ez_start(ez_workgroup_t *wg);
  void ez_reset(ez_workgroup_t *wg);

(I called it ez_ to avoid namespace clashes and I use z a lot in software, not to make it sound like easy; although it turned out that way - remember, it's e-zed, not e-zee!)

At present ez_workgroup_t is a subclass of e_dev_t so they can just be cast as well, although i'm not sure how long adapteva will keep the api the same such that this works.

The idea here is that a workgroup represents a rectangular group of cores which will be cooperating together to work on a job. It doesn't quite fit with the opencl workgroup topology of homogenous multi-core, nor particularly with the way i think the parallella sdk is heading; but it can be fine-tuned.

In the end it was more work thinking up the api than implementing it - I already have much of it working. Because I was too lazy I just tried out the single-core test code but one at a time on different cores. It worked.

Issues remaining

The loader relocates each loaded code once and then splats it to each target core. This means they all share off-core addresses and there is no ability to create thread-local / private storage.
I will think about this, probably the easiest way is to implement support for thread-local storage sections. Even without compiler support this can (sort of) just go straight into the loader, it would require some more work since it would have to handle each target core separately. Otherwise it would need some runtime setup.
There's still no easy way to create linkage between on-core code.
e-lib has some support for relocating a known address to a different core - but that only works automatically if you're running the same code on that core. In a non-homogenous workgroup scenario you have to find this information externally.

Oh hang on, actually I can do this ... nice.

Code for each core can define weak references to code in other cores. Once all the code has been loaded into the workgroup it could just resolve these references. The code would still need to use the e-lib functions (or equivalent) for turning a core-relative-address into a grid-relative one, but this is not particularly onerous compared with having to manually extract symbol values from linker files at link or run-time ...
But if i do that ... what happens with .shared blocks? Are they really shared globally amongst all grids in the workgroup, or are they local to each grid? Hmm ...
Doable technically, once I decide on an acceptable solution. Probably a new section name is needed.
The newly published workgroup hardware support stuff should map nicely to this api. e.g. blatting on the code and starting the workgroup.
It would be nice to have a way to manage multiple programmes at once in some sort of efficient manner. e.g. being able to change the set of programmes on-core without having to relocate them again and re-set the shared data space. Because LDS is so small real applications will need to swap code in and out repeatedly.
I'm not aiming for nor interested in creating an environment for loading general purpose code which wasn't written for the parallella. This is for loading small kernels which will have all code on-core and only use external memory for communicatons.

I guess once I get the globally weak reference stuff sorted out I can finally tackle some multi-core algorithms and go back to the face recognition stuff. But today is too nice to spend inside and so it waits.

Update: I had another short hacking session this morning and came up with a simple solution that handles most problems without too much effort.

First, I changed the load api call to 'bind' instead, and added a separate load call.

  int ez_bind(ez_workgroup_t *wg, const char *path, int row, int col, int nrows, int ncols);
  int ez_load(ez_workgroup_t *wg);

Internally things are a bit different:

Bind opens the elf file and lays out the sections - but does no reloc processing nor does it write to the target cores.
A separate link is performed which processes all the reloc sections, and resolves symbols across programs. Again this is all implemented off-core.
The load stage just copies the core binaries to the cores. This is literally just a bunch of single memcpy's per core, so it should be possible to switch between programs relatively quickly.

At the moment the linking/reloc is done automatically when needed - e.g. if you call ez_addr, but it might make sense to have it explicit.

When working on the external-elf linking I realised I didn't need to implement anything special for globally-shared resources, they can just be weak references as with any other run-time linked resources.

e.g. program a, which defines a work-group shared block and references a buffer local to another core:

struct interface shared __attribute__((section(".bss.shared")));
extern void *bufferb __attribute__((weak));

int main(void) {
        // needs to map to global core-specific address
        int *p = e_get_global_address(1, 0, bufferb);

        p[0] = 10;
        shared.a = shared.b;
}

And program b which references the shared block from program a, and defines a core-local buffer (in bank 1):

extern struct interface shared __attribute__((weak));
int bufferb[4]  __attribute__ ((section(".bss.bank1")));

int main(void) {
        // can use shared or bufferb directly
}

One of the other issues I was worried about was allocating thread-private storage. But that can just be done manually by reserving specifics slots in shared resources in a more explicit manner.

DuskZ + embedded db

So after being on the backburner for a while i've started thinking about duskz again.

Apart from finding other things to do with my time one reason I shelved it that I was pretty unhappy with the i/o mechanism i came up with. It was just a pile of pointless boilerplate and fucking around and it wasn't fun to write and wouldn't be to maintain ...

Thus I think the first thing I want to work on is changing to an embedded database, and let that handle all the shit. Fortunately berkeley db-je has a rather awesome persistence interface and so i'll be using that. The only thing I need to manage is tracking unique instances of live objects, but that is really very little work.

At first I thought i'd have an issue with prototypical objects - i.e. loading base state from an object, which then becomes a live copy - but I can just use a separate store (aka 'database') for that.

Anyway this isn't going to be a high priority and i'll only hack on it in bits and pieces when I have the time and energy. I think the design work I did earlier will make it fairly simple, although it might need some tweaking to fit.

Revamped Streaming Internode Radio Player

Although I errr, blew up my amplifier a few weeks ago (gin & tonics and amiga demos DO mix, altogether too well, from what little I remember anyway) ... I went to look up some internet radio today and noticed they prettied up the index page and included icons.

So what was going to be a short hacking session ended up with a much improved "internode radio app" compared to the last one.

Rather than a hardcoded list it retrieves and parses the RSS feed for the list of stations every time it starts up, so it's current and now has the icons too.

Handles rotation without resetting the stream.

I spent close to an hour fighting with LinearLayout and RelativeLayout so i'm too pissed off to upload it right now.

I also just discovered that the layout is all fucked on a phone so i'll have to fix that first. So I wont be in any rush for that because the layout is fine on all the devices i own myself ...

Update: Didn't even let the ink dry on this but thought i'd get it out of the way. It can be downloaded over on my shitty internode page for it. I tweaked the layout too - it works ok on a tv, 7" tablet and an SG3, beyond that who knows with how android does its resolution stuff.

Update: Moved the app home page.
