twiddle dweeb twiddle dumb

I started writing a decent post with some detail but i'll just post this plot for now.

Ok, some explanation.

I tried to scale the performance by dividing the execution time per transform by N log2 N. I then normalised using a fudge factor so the fastest N=16 is about 1.0.

My first attempt just plotted the relative ratio to jtransforms but that wasn't very useful. It did look a whole lot better though because I used gnuplot, but this time i was lazy and just used openoffice. Pretty terrible tool though, it feels as clumsy as using microsoft junk on microsoft windows 95. Although I had enough pain getting good output from gnuplot via postscript too, but nothing a few calls to netpbm couldn't fix (albeit with it's completely pointless and useless "manual" pages which just redirect you to a web page).

Well, some more on the actual information in the picture:

As stated above, the execution time of a single whole transform is scaled by N log_2 N and scaled to look about right.
I run lots of iterations (2^(25 - log N)) in a tight loop and take the best of 3 runs.
All of mine use the same last two passes, so N=2^2 and N=2^4 are "identical". They are all DIF in-place, out-of-order.
The '_mt' variants with dashed lines are for multi-threaded transforms; which are obviously at a distinct advantage when measuring executiong time.
- My multi-threading code only kicks in at N > 2^10 ('tab_2' above has a bug and kicks in too early).
The 'rot' variants don't use any twiddle factor tables - they calculate them on the fly using rotations.
- ~~'rot_0' is just of academic interest as repeated rotations cause error accumulation for large N.~~ Wrong again! I haven't done exhaustive tests but an impulse response and linearity test puts it equivalent or very close to every other implementation up to 2^24
- 'rot_1*' compensates with regular resynchronisation with no measurable runtime cost. ^^^ But why bother eh?

The 'tab' variants use a more 'traditional' lookup table.

~~'tab_0' uses a single table of N/2+N/4 complex numbers.~~ See update below.

'tab_1' uses a single compressed table of N/2+1 real numbers.

        int l1 = i << logStep;
        int l2 = i << logStep + 1;
        int l3 = l1 + l2;

        int mw = w.length - 2;
        int nw = w.length - 1;
        float w1r = w[l1];
        float w1i = -w[nw - l1];
        float w2ra = w[l2 & mw];
        float w2ia = w[nw - (l2 & mw)];
        int cs2 = (l2 >> logN - 1) * 4;
        int cs3 = (l3 >> logN - 1) * 4;

        float w2r = cosmap[cs2 + 0] * w2ra + cosmap[cs2 + 1] * w2ia;
        float w2i = cosmap[cs2 + 2] * w2ra + cosmap[cs2 + 3] * w2ia;
        float w3ra = w[l3 & mw];
        float w3ia = w[nw - (l3 & mw)];
        float w3r = cosmap[cs3 + 0] * w3ra + cosmap[cs3 + 1] * w3ia;
        float w3i = cosmap[cs3 + 2] * w3ra + cosmap[cs3 + 3] * w3ia;

And this .

'tab_2' uses multiple tables, of well, somewhat more than N complex numbers. But not too excessive, 2^20 requires 1 048 320, which is around double the size of a single full table.

The 'rec' variant (and 'tab_2', 'tab_2_mt', and 'rot_1_mt') use a combined breadth-first/depth-first approach. It's a lot simpler than it sounds.
I only just wrote 'tab_2' a couple of hours ago so it includes all the knowledge i've gained but hasn't been tuned much.

So it turned out and turns out that the twiddle factors are the primary performance problem and not the data cache. At least up to N=2^20. I should have known this as this was what ffts was addressing (if i recall correctly).

Whilst a single table allows for quick lookup "on paper", in reality it quickly becomes a wildly sparse lookup which murders the data cache. Even attempting to reduce its size has little benefit and too much cost; however 'tab_1' does beat 'tab_0' at the end. While fully pre-calculating the tables looks rather poor "on paper" in practice it leads to the fastest implementation and although it uses more memory it's only about twice a simple table, and around the same size as the data it is processing.

In contrast, the semi-recursive implementation only have a relatively weak bearing on the execution time. This could be due to poor tuning of course.

The rotation implementation adds an extra 18 flops to a calculation of 34 but only has a modest impact on performance so it is presumably offset by a combination of reduced address arithmetic, fewer loads, and otherwise unused flop cycles.

The code is surprisingly simple, I think? There is one very ugly routine for the 2nd to lass pass but even that is merely mandrualic-inlining and not complicated.

Well that's forward, I suppose I have to do inverse now. It's mostly just the same in reverse so the same architecture should work. I already wrote a bunch of DIT code anyway.

And i have some 2D stuff. It runs quite a bit faster than 1D for the same number of numbers (all else being equal) - in contrast to jtransforms. It's not a small amount either, it's like 30% faster. I even tried using it to implement a 1D transform - actually got it working - but even with the same memory access pattern as the 2D code it wasn't as fast as the 1D. Big bummer for a lot of effort.

It was those bloody twiddle factors again.

Update: I just realised that i made a bit of a mistake with the way i've encoded the tables for 'tab0' which has propagated from my first early attempts at writing an fft routine.

Because i started with a simple direct sine+cosine table I just appended extra items to cover the required range when i moved from radix-2 to radix-4. But all this has meant is i have a table which is 3x longer than it needs to be for W^1 and that W^2 and W^3 are sparsely located through it. So apart from adding complexity to the address calculation it leads to poor locality of reference in the inner loop.

It still drops off quite a bit after 2^16 though to just under jtransforms at 2^20.

radix-4 stuff

Well I did some more mucking about with the fft code. Here's some quick results for the radix-4 code.

First the runtime per-transform, in microseconds. I ran approximately 1s worth of a single transfer in a tight loop and took the last of 3 runs. All algorithms executed sequentially in the same run.

                16          64         256         1024         4096       16384        65536       262144

jtransforms  0.156       1.146       6.058       27.832      135.844     511.098    3 037.140   14 802.328
dif4         0.160       0.980       5.632       27.503      138.077     681.006    3 759.005   20 044.719
dif4b        0.136       0.797       4.713       22.994      120.915     615.623    3 175.115   17 875.563
dif4b_col    0.143       0.797       4.454       21.835      117.659     593.314    3 020.144   22 341.453
dif4c        0.087       0.675       4.255       21.720      115.550     576.798    2 775.360   15 248.578
dif4bc       0.083       0.616       3.760       19.596      108.028     547.334    2 810.118   16 308.047
dif4bc_col   0.137       0.622       3.699       19.629      107.954     550.483    2 820.234   16 323.797

And the same information presented as a percentage of jtransforms' execution time with my best implementation highlighted.

              16          64          256         1024        4096        16384       65536       262144

jtransforms   100.0       100.0       100.0       100.0       100.0       100.0       100.0       100.0
dif4          102.4       85.5         93.0        98.8       101.6       133.2       123.8       135.4
dif4b          86.7       69.6         77.8        82.6        89.0       120.5       104.5       120.8
dif4b_col      91.3       69.6         73.5        78.5        86.6       116.1        99.4       150.9
dif4c          55.9       58.9         70.2        78.0        85.1       112.9        91.4       103.0
dif4bc         53.3       53.8         62.1        70.4        79.5       107.1        92.5       110.2
dif4bc_col     87.7       54.3         61.1        70.5        79.5       107.7        92.9       110.3

Executed with the default java options.

$ java -version
java version "1.8.0_92"
Java(TM) SE Runtime Environment (build 1.8.0_92-b14)
Java HotSpot(TM) 64-Bit Server VM (build 25.92-b14, mixed mode)

CPU is kaveri clocked at minimum (1.7Ghz) with only a single DIMM, it is quite slow as you can see.

A summary of the algorithms follow.

jtransforms: jtransforms 2.2, complexForward() routine.
dif4: A radix-4 implemented as two nested radix-2 operations. 42 flops.
dif4b: A radix-4 implemented directly with common subexpressions explicitly encoded. 36 flops.
dif4b_col: The first approximately half passes are the same as dif4b, but the second half swap the order of the loop in order to exploit locality of reference, a longer inner loop, and re-using of twiddle factors.
difc: The first N-2 passes attempt to re-use twiddle factors across pairs of results situated at (i,N-i). The N-1 pass is hand-coded for the 4 cases which only require 3 constants for the twiddle factors.
dif4bc: The first N-2 passes are the same as dif4b. The N-1 pass is hand coded (==dif4c).
dif4bc_col: A combination of dif4bc and dif4b_col.

The final (trivial) pass is hand-coded in all cases. dif4 requireds N/2 complex twiddle factors and the rest require N/2+N/4 due to the factorisation used.

In all cases only a forward complex transform which leaves the results unordered (bit-reversed indexed) is implemented.

Thoughts

All the implementations do full scans at each pass and so start to slow down above 2^12 elements due to cache thrashing (together with the twiddle table). Depth-first ordering should help in most cases.
Despite requiring fewer twiddle lookups in dif4c the extra complexity of the code leads to register spills and slower execution. That it takes a lead at very large numbers is also consistent with this and the point above.
Twiddle factor lookups are costly in general but become relatively costlier at larger sizes. This needs to be addressed separately to the general cache problem.
Whilst the re-ordering for the "col" variants was a cheap and very simple trick to gain some performance, it can't keep up with the hand-coded variants. Further tuning may help.
For addressing calculations sometimes it's better to fully spell out the calculation each time and let the compiler optimise it, but sometimes it isn't.
It is almost always a good idea to keep loops as simple as possible. I think this is one reason such a trivial / direct implementation of the FFT beats out a more sophisticated one.
There's a pretty clear winner here!

In most cases the calculations are expanded in full inside inner loops, apart from the W^0_N case. In all other cases the compiler generated slower execution if it was modularised, sometimes significantly slow (10%+). I suspect that even the radix-4 kernel is starting to exhaust available registers and scheduling slots ~~together with the java memory model~~. The code also includes numerous possibly questionable and sometimes a little baffling micro-optimisations. I haven't validated the results yet apart from a test case which "looks wrong" when things go awry but i have reasonable confidence it is functioning correctly.

After I found a decent reference I did start on a radix-8 kernel but i realised why there is so little about writing software to do it; it just doesn't fit on the cpu in a high level language. Even the radix-4 kernel seems to be a very tight fit for java on this cpu.

Still playing ...

java, fft, and jvm

After quite a break i finally got stuck into a bit of hacking over the weekend. Actually i literally spent every waking hour of the weekend tinkering on the keyboard, about 25 hours or so. Yes my arse is a bit sore.

I will probably end up writing more about it but for now I'm just going to summarise some findings and results of some tinkering with FFT routines in Java. It may sound oxymoronic but i've been a bit under the weather so this was something "easy" to play with which doesn't require too much hard thought.

Initially i was working on an out-of-place in-order implementation but I hit some problems with 2D transforms so decided to settle on in-place out-of-order instead. Using a decimation in frequency (DIF) for the forward transform and a decimation in time (DIT) for the inverse allows the same routine to be used for all passes with no bit-reversal needed. I only implemented the basic Cooley-Tukey algorithm and only with radix-2 or radix-4 kernels and with special case code for the first (DIT) or last (DIF) pass. I'm only really interested in "video-image-sized" routines at this point.

I normally use jtransforms (2.4) for (java) fft's so i used that as a performance basis. Whilst the out-of-order results aren't identical they are just as useful for my needs so I think it's fair to compare them. In all cases i'm talking about single-threaded performance and complex input/output (jtransforms.complexForward/complexInverse), and i've only looked at single precision so far.

An all radix-2 implementation is about half the speed of jtransforms but takes very little code.
A naive radix-4 factorisation (40 flops) is roughly on-par with jtransforms depending on N.
A better radix-4 factoriation (34 flops) is 10-30% faster across many sizes of interest.
I can beat jtransforms quite handily at 2D transforms even using the naive radix-4 kernel. e.g. ~60% for 102x1024.

This only required creating a somewhat trivial implementation of a column-specific transform. More on this in another post. It will have some pretty pictures. I'm still working on code for it too.

The performance inflexion point (1D) is about 2^14 elements, beyond that jtransforms pulls (well) ahead. I suspect this is related to the cache size and such minutiae is something i just haven't explored.

Some other java/jvm related observations:

Single micro-optimisations can make significant (up to 20%) differences to total runtime. Such as:
- Addressing calculations;
- Floating point common subexpression elimination;
- Loop arithmetic;
- ~~Memory access ordering (due to java memory model and aliasing rules);~~
- Using final, or copying a field value to a local variable. Why? Maybe the compiler uses these as a registerisation hint?
- And more.
Memory access ordering is particularly difficult to overcome; there is no 'restrict' keyword or even possibility with the java language. Any changes one makes will be quite platform and compiler specific (although microoptimisations in general are to start with). Nope! Seems i was just a victim of a skinner box. After a check I found there are no relevant rules here and changes i measured were for unrelated internal compiler reasons which are of no practical use. Should've checked before wasting my time.

Floating point arithmetic is also a bit-shit-by-design so expressions can't be freely re-arranged by the compiler for performance (well, depending on how reliable you expect the results to be, i think java aims to be strict). Java currently also has no fused-multiply-add although java-9 has added one. "complex float" would be nice. Although I didn't feel like digging out the disassembler to explore the generated code from hotspot so i'm only guessing as to how it's compiled the code.
The jvm sometimes "over-optimises" resulting in slower code over time.
I suspect it inlines too much and causes register spills. In some cases I saw 20%+ performance hits although after upgrading to the latest jvm (from u40 to u92) they seem less severe although still present. I used "-XX:CompileCommand=dontinline,*.*" to compare to the default. It showed up as the first-of-3 runs being somewhat faster than subsequent ones, whereas normally it should improve as hotspots are identified. I just thought it was my cpu throttling at first but it continued after i'd locked it.
On a shithouse register starved architecture like x86 the jvm overheads limit the complexity of routines. e.g. a (naive) radix-8 kernel ran slower than a radix-4 one due to register spills (it wasn't very good either though).
It's very easy to take a "simple" routine and blow it out into a big library of special cases and experiments for that elusive extra single-digit% in performance gained. Actually i've done a lot of this work before but i didn't bother referencing much of it because there is no goal; only a journey.

Of course 'performance java' isn't exactly a hot topic anymore and i should be focusing on massively-parallel devices but I was only doing it to pass the time and I can tackle OpenCL another wet weekend. If I can identify isolated cases for the the optimiser-degredations I came across I will see what the java forums have to say about them.

I've nearly exhausted my interest for now but i still have a couple more things to try and also to identify what if any of it I want to keep. If I get really keen I will see about some sort of reusable library for special purpose fft use - one problem with jtransforms (and indeed other fft libraries) is that you need to marshal the data into/from the correct layout which can be quite costly and negate much of the performance they purport to provide. Big if on that though.

my lonesome easter

I made some chocolate cakes.

They have 2 fresh Habanero chillies in them, so they're quite potent. I also undercooked them a bit but they can be salvaged with a few minutes in a toaster oven. As I have no one to eat them with i did a half-batch and froze most of them.

I also had a 3k pork forequarter that had been in the freezer a bit too long so I took that out and spent a couple of days cooking different things with it.

Sliced some up with some skin on, marinated them in something jerk-ish, and put them in the vertical grill; basically spare ribs. I used the marinade again on a the hock overnight and then long-roasted that the next day. Got a few nice sandwiches out of that.

Baked some bread for said sandwiches; well bread-maker baked. I throw in some Bulgar wheat and linseed to make it a bit more interesting.

Diced a lean cut and made a masaman curry with it; I had intended to make a green curry but the shops were closed and that's all I had. I froze most of that because I had too much other food. It could've been better but it's ok.

Then I took the meaty bones and a bunch of other bones i'd been keeping for the purpose and pressure cooked the lot for 2.5 hours. I sloughed the meat off the bones, added lots of chillies, some tomatoes, garlic, spices, soup powders, stock powders, soy sauce, fish sauce, lemon basil; and made a super-spicy pork soup out of it.

It's super-hot! And very fatty so to be consumed in small amounts. I made the noodles for this bowl too of course. Because the mixer bowl was occupied I first tried making the noodles by hand but failed miserably; didn't add enough water, but then I freed up the mixer bowl and finished the job.

The mixer bowl was busy because I also made some hot-cross buns and the dough was still rising.

Without the xtian symbology of course. The recipe I had seemed to have far too little water so I added more but the resultant texture doesn't seem quite right. I think i overcooked them a bit and maybe let them rise a bit too long as it's a bit light and dry inside but the holes are small and evenly distributed. I also added much more spice, a little golden syrup and chocolate pieces as well.

I have these strange chilli plants I got seeds from mum and I was curious as to which variety they were. This morning I did some searching and found out; Aji Orchid, aka Peri Peri, Bishops Crown, or many other common names.

I've got quite a few of these growing and as they are cross pollinated seeds they are all a bit different - shapes vary quite a bit and so does their heat from almost nothing to enough to notice. They are tall thin plants. A couple of the bushes I have are over 6' high now and still seem to be growing upwards. But I've had a lot of problem with Eggfruit Caterpillars (my best guess) this year, so much so that i've not managed to get any ripe fruit yet; well and I keep eating them before they get that far.

Anyway I still had a day to burn through so I looked into pickling some. I found a reference on pickling brine concentrations (beyond 'add salt'), found a lid that fit a lidless jar I had and made an airlock out of an empty pill bottle I suddenly have lots of. Then picked some chillies and cut them up.

I waited to see how much water would come out on it's own - as I expected not much at all so I topped it up with 500ml of 7.5% brine and inserted a jar to keep them submerged, sealed it up and put it in the cupboard to be forgotten about for a while to let them ferment in peace.

I then got out in the garden and did a rush job setting up some furrows and seeding some wintery things in one garden bed. I planted some snow peas but the rest was a medley of seeds I just threw around; bugs always seem to eat my winter vegetables so it's not worth the effort but who knows it might work this time. I think I used broccoli, chinese cabbage, brussel sprouts, and lettuce.

And then I dug a big hole and moved a lime tree from a half-wine-barrel into the ground. I was surprised at how much the roots had filled the whole barrel but otoh it didn't seem root bound either. Once it was out of the pot I managed to lift the whole thing in and out of the hole so despite watering regularly the dirt wasn't holding any of it but I knew that anyway from the state of growth and lack of fruit. I'm sure my back will be a bit sore tomorrow.

Over the last 4 days I also played a good many hours of Bloodborne and other games. I'm stuck again in Bloodborne - Micolash, Martyr Logarius, or Lower Pthumeru Chalice (Rom again). I'm starting to get a bit sick of grinding (i'm level 105 or something) because i'm just too slow in reactions to be able to get through some parts without it. I'm about 100 hours in anyway which is pretty much my limit with any long game. Maybe i'll keep playing.

I also played some DRIVECLUB in memorial of Evolution Studios being shut down. Why a game of such high quality and depth didn't sell well is beyond me but it's a bit of a bummer and hopefully they can find a way to make more driving games in the future as they have always made really special games.

RIP Evolution, the next beer I have is for you guys.

I nipped out to the shops on Saturday morning but otherwise haven't seen another soul since Thursday evening. I had no visitors, nobody called, the friends I might visit are all away for the weekend. At least I got a couple of emails but none from 'regular' friends.

It's all just so pointless isn't it?

unkown unknowns

If I quit my job, what will I do instead?

Pity I can't afford to retire fully although given no male in my family has reached 60 yet that might not be true either! Probably should be though as two of those were somewhat self-inflicted and dad was cancer in the 80s.

But I can afford to quit this one if I choose to.

For a start it's been around 10 years which is much longer than i've had any other job for and whilst it's been often challenging and engaging there is always the fair share of frustration and baggage built up over such a span of time. For instance i've had years of work stuck in locked drawers unused. Stuff that should have been published, stuff that may even be published yet. It's even in an industry I don't particularly want to be a part of (not that I can think of any I do want to be part of!). On-top of all this there have been a good few years of very odd circumstances which only came to a head around xmas last year. Circumstances that while discussing with peers in hindsight appear to border on abuse. It was only though incidental rather than malicious intent but the cause doesn't affect the outcome. It's been raised and addressed but it feels too little too late since too much damage has been done that just can't be undone. Actually the initial reaction to the insight i've gained about the workplace itself in the last few weeks is that the whole joint is a complete fuckup and is a big reason i'm thinking of leaving sooner rather than later.

One other particular thing of note that crossed my mind over the last couple of days whilst reflecting on the whole period is that i've made absolutely no new friends during it - not a single one. And I don't just mean "real proper" friends you keep in touch with decades later which can be rare - I've had absolutely no social interaction with anybody outside of being at work itself (or lunch) or the annual xmas party. And the xmas party is mostly contractors i've never worked with. It's not entirely without reasons, to start with there just wasn't that many I did work with, and most people already have their lives done at this age. But it still does seem a little odd in hindsight given i've generally gotten on quite well with most of them and all the time involved.

Despite all this I've usually felt it was adequately compensated with lower and flexible work hours, an almost completely free reign in technology and implementation choices, and extended amounts of summer leave (even if it was usually due to funding shortages). But even these - as absolutely awesomely awesome as they are to me - have their limit of worth.

So I haven't decided yet.

One reason is of course what happens next. I don't really feel like i'm capable of much at all right now (look at the dearth of hacking on this blog for evidence) but that might be more perception than reality and it could change in the blink of an eye. I can however afford to take plenty of time to get my shit together if I need to (decades actually). Another is that I've never had to actually look for any job i've ever had and i'm generally pretty hung up about doing such things for the first time, yeah still. Due to working for Ximian/Novell and now these guys I don't have much of a local 'network', although it's not empty either. And my skills and interests are (probably?) not in much demand around this sleepy city outside of where I am now. Well obviously with my skills and experience I can code almost anything for almost anything (or quickly learn how to) but there's a lot of rather unappealing anythings out there that get coded and there's often some really poor technology taking up the flavour-of-the-month pedestal at any given time as icing on the cake.

If I decide in the positive will I manage to last out the remaining money for this year? Professionally one would think there is no question but personally once a decision like this has been made it will be hard to continue. I'm just a casual employee (no notice needed) and this is not an entirely professional matter I think. Another 3 months? Hmm.

I'll think about it some more I guess.

update: Told 'em. Well, we'll see. They don't want to let me go. I mean really not. I guess i'm worth something.

vulkan is out at last

I'm just starting to think about hacking again so that delay might not have been so bad for me. I haven't looked at it yet though.

Oh, and what a nice birthday present too!

Update: Not that i've had time to look but still no AMD drivers for linux; although if this means an end to fglrx then that will be worth it.

still breathing

Holidays about to end. Yay, back to work.

Pretty uneventful overall. Getting sick stopped me going to the beach and then I didn't feel like doing anything at all; it's been a very quiet last few weeks and I haven't left the house in a week. I ran out of people to catch up with as well, and vary rarely does anyone try the reverse. Peach tree got ripe which is nice and i'm starting to get some chillies, and i might finally get some ripe tomatoes next week - they're just taking forever. Overall the garden's been a bit shit this year as it's just been too dry - we just had a wet couple of days but that's the only rain we've had for months. My water bill will make none of it worth it. Even the roses only flowered properly once.

I finally decided to crack open some of the games sitting here and I've been playing a lot of Bloodborne the last week ... i'm pretty impressed with the level and enemy designs and the fighting mechanics. I'm always surprised when i find a whole new area to explore which adds another major variation to the environments and enemies. The graphics and framerate are much better than I expected from "reports" - the chromatic aberration is barely visible from the couch and actually looks fairly natural, and it's got some frame-drops but is otherwise very solid. The level of detail and density is incredible and the lighting changes as one progresses (certain bosses advance time) changes the whole mood. After 28 hours i restarted with a new guy so i could level better and am 37 hours and 90 levels in with him. But despite the really tight combat (which took days to get to grips with) and inspired setting; it's just starting to feel like any other RPG - I progress till I get stuck on a new area or a big baddie and then have to grind levels and equipment to progress. Death is cheap so it's more just an annoyance at this point. I did the first couple of preset chalice dungeons yesterday and they are a mixed bag; it leveled up my weapons but even the first run feels like grinding. So it's getting a little boring actually since i'm getting a bit overpowered in the areas i've already done, stuck on a new area, and the chalice dungeons feel old already. I guess I'll keep going, at least it's a heavy time-sink. It's all a bit fucking dreary though.

And still no Vulkan?

vintage hardware

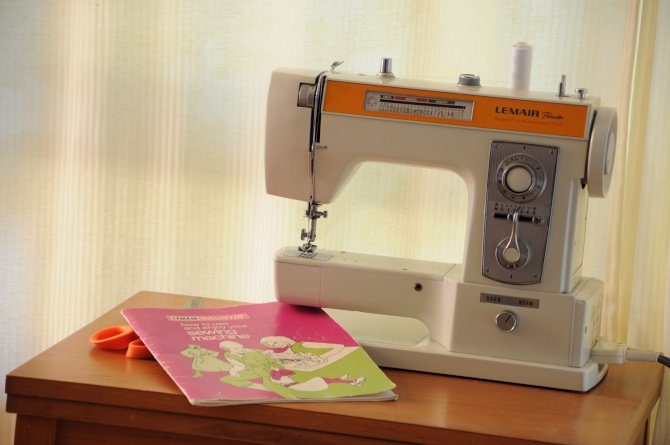

So my random visits to 2nd hand shops & pawnbrokers finally ended in spending some money.

It also came with the garishly-bright-orange lined, grey padded vinyl carrying case and a few bits as well. Was a little bit of a haul on the bike but it survived the journey home strapped to the pannier rack.

I took the top off and it looks unworn although there are a few wear marks here and there externally. I ran a few stitches and it seems to work ok, certainly better than the other machine from such a limited test. It has some strange stitches such as ones that move the needle backwards and the zigzag width setting mechanism is just a bit novel.

Not much about this make on the internet apart from someone trying to sell the same one for $400 on gumtree. But it just appears to be a Brother rebadge and there's more info on those and best i can tell it seems to be about as old as me. Strangely there are almost no manufacturer markings on the machine at all apart from the branding on the front and a serial number on a plate riveted to the underside. Maybe they were hiding the fact that it was made in Japan?

I just wanted a free-arm machine and given it was almost all metal and it looked to be in good enough nick the $89 cash converters wanted didn't seem much of a risk even if the bloke gave me some funny looks. Not that i have anything in particular to sew but it's handy to have one that works properly.
